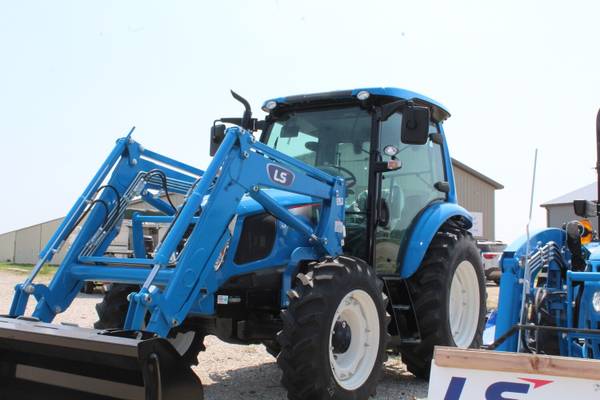

LS Tractor MT573 - $67,000 (Spencer)
1601 35th Ave West near Midwest Ag & Urban
QR Code Link to This Post
ENGINE:
Type: Vertical Water-Cooled 4Cycle Diesel Engine
Model: L4C25-T
Emission: EPA Tier4F
Engine HP, (kW): 73 (54.4)
PTO, HP: 62
Rated speed, rpm: 2,500
Displacement, in3: 152.9
Fuel tank capacity, gal: 26.4
DRIVE TRAIN
Transmission type: Synchro Shuttle
No. of speeds: F20 x R20
Forward speed, mph: 0.11 ~ 19.4
PTO
Type: Independent
Rear, rpm: Standard 540 / 750 / 1,000
HYDRAULIC SYSTEM
Control System: Position/Draft
Implement pump, gpm: 13.2
Steering pump, gpm: 6.6
Total flow, gpm: 19.8
Category: CAT II
Hitch lift capacity, lbs: 6,614
Remote ports: 3 pairs (Front), 3 pairs (Rear)
DIMENSION
Overall length, Frame to link, in 150
Overall width with tires, in 74.4
Wheelbase, in 84.6
Height to top, in 104.4
Total weight without ballast, lbs: 6,669
TIRE SIZE
Front: 11.2 – 24
Rear: 16.9 – 30
WEIGHT
Total weight without ballast, lbs: 6,620
FRONT END LOADER - LL6100
Tractor Application: MT5 Series
Bucker Size (in): 78
Maximum Lift height (in): 126.5
Clearance with Attachment Dump (in): 95.3
Reach at Maximum Height (in): 5.7
Maximum Dump Angle (deg.) 64
Maximum Rollback Angle (deg.): 38
Digging Depth (in): 7.0
Overall Height in Carry Position (in): 64.2
Lift Capacity(@ Pivot pin) (lbs.) 3,626
Breakout Force(@ Pivot pin) (lbs.): 6,644
Approx. Weight(Loader w/o Bucket)(lbs.): 1,232
